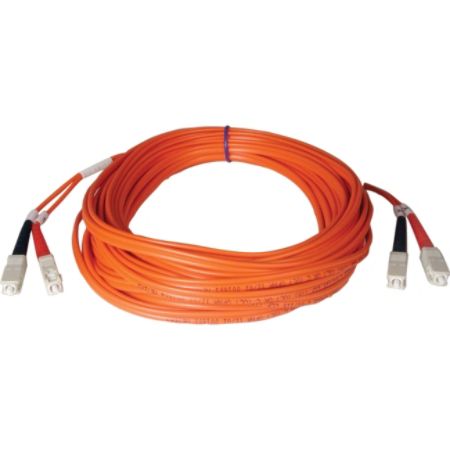

Tripp Lite Duplex Multimode 50/125 Fiber Patch Cable Item # 427405
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
427405
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Tripp Lite's 2-meter multimode duplex fiber channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in fiber and fiber channel applications. It is backward compatible with 62.5-micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks.
Product Details
| Item # | 427405 |
| Manufacturer # | 10702839 |
| Core/Cladding Diameter | 50/125 µ m |
| Additional Information | Number of fibers: 2; Fiber type: all glass graded index; Core Diameter: Two 50+/-3 microns; CLAD diameter: 125+/-2 microns; Primary coating diameter: 245+/-15 microns; Secondary coating diameter: 900+/-50 microns; Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum; Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum; Numeric apeture: .275 nominal; Proof test level: 100,000 PSI; Insertion loss testing performed on every connector (0.2db typical) and provided with cable |
| Cable Characteristic | Patch Cable |
| Certifications & Standards | FDDI; OFNR |
| package contents | Fibre Channel Patch Cable; 2M duplex MMF cable SC/SC 50/125 fiber |
| Product Name | Fibre Channel Patch Cable |
| Connector on First End | 2 x SC Male |
| manufacturer | Tripp Lite |
| brand name | Tripp Lite |
| Connector on Second End | 2 x SC Male |
| cable type | Fiber Optic |
| Fiber Qty | 2 |
| Jacket Type | Plenum |
| Connectors (Other Side) | 2 x SC multi-mode - male |
| Connectors | 2 x SC multi-mode - male |
| length | 6.56 ft. |
| Type of Fiber Optics | Multimode |
| Core / Cladding Diameter | 50 / 125 micron |
| color | orange |
| warranty length | limited lifetime |
| Show More ▾ |
